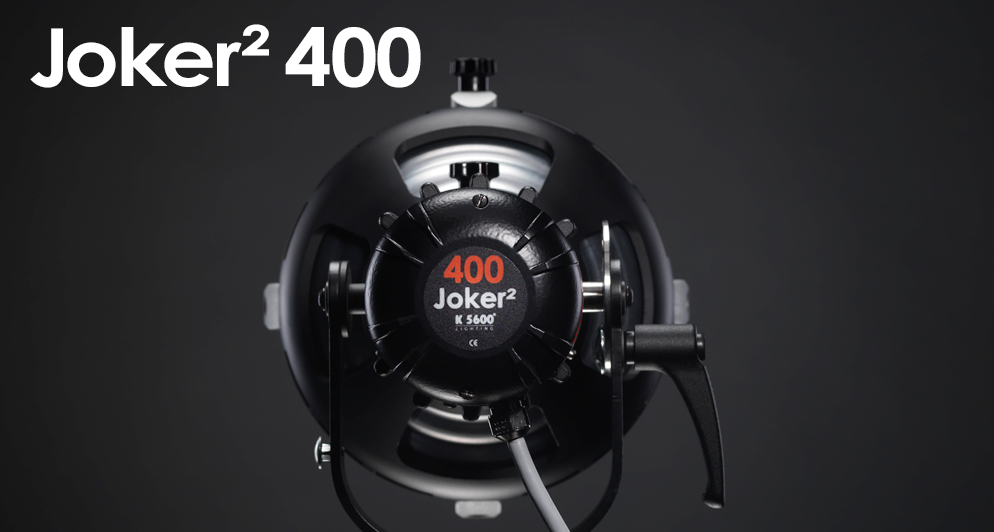

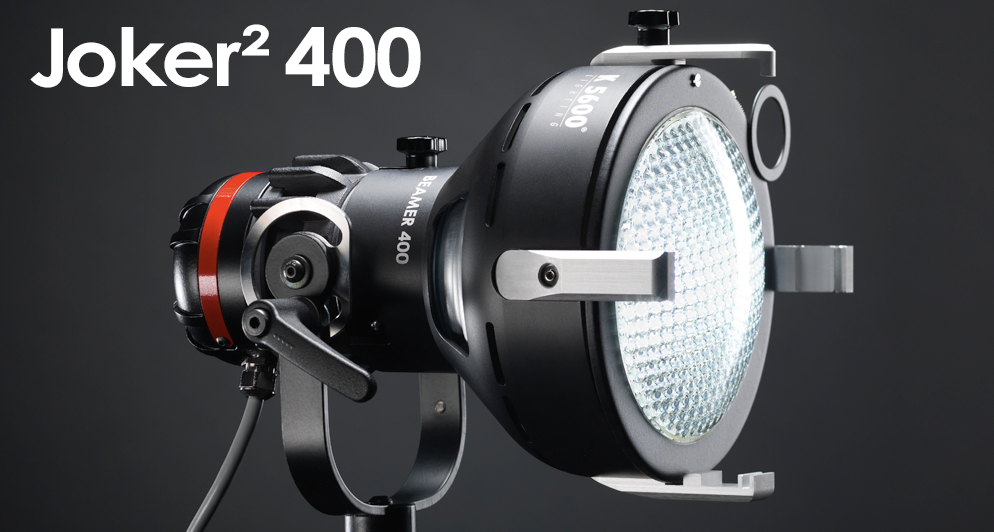

Joker² 400
The Joker² 400 gives 25% more output than the previous version of the Joker-bug 400. The fixture offers a very similar output to a 575W HMI with 30% less electrical consumption and a smaller size and weight.

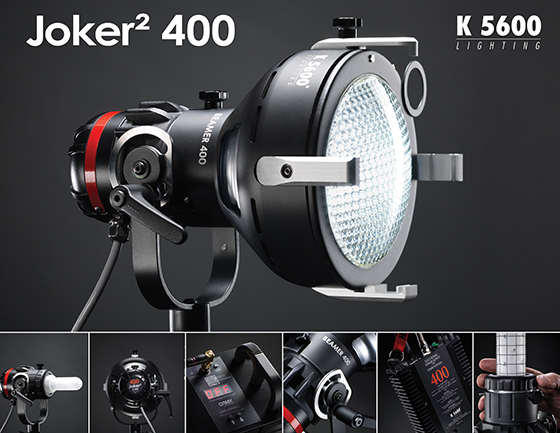

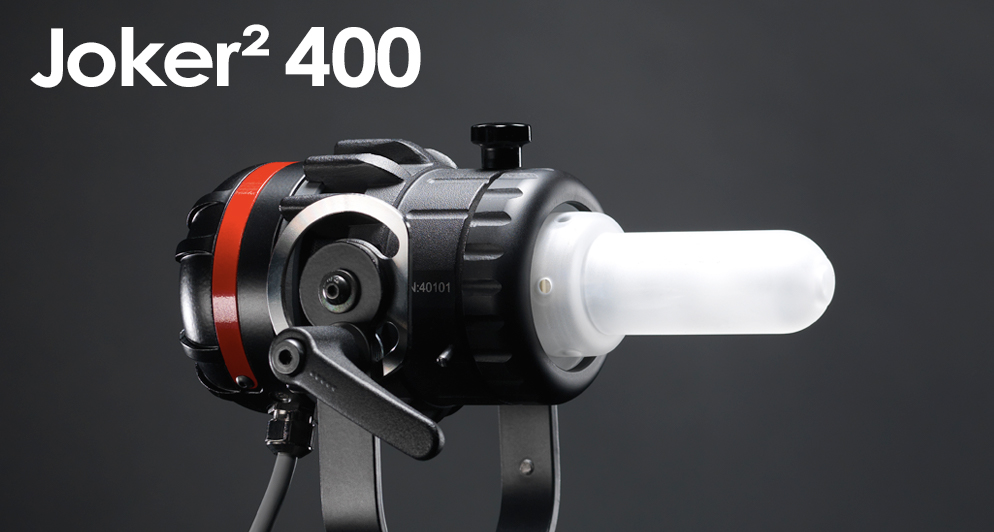

Bug-Lite and PAR configuration

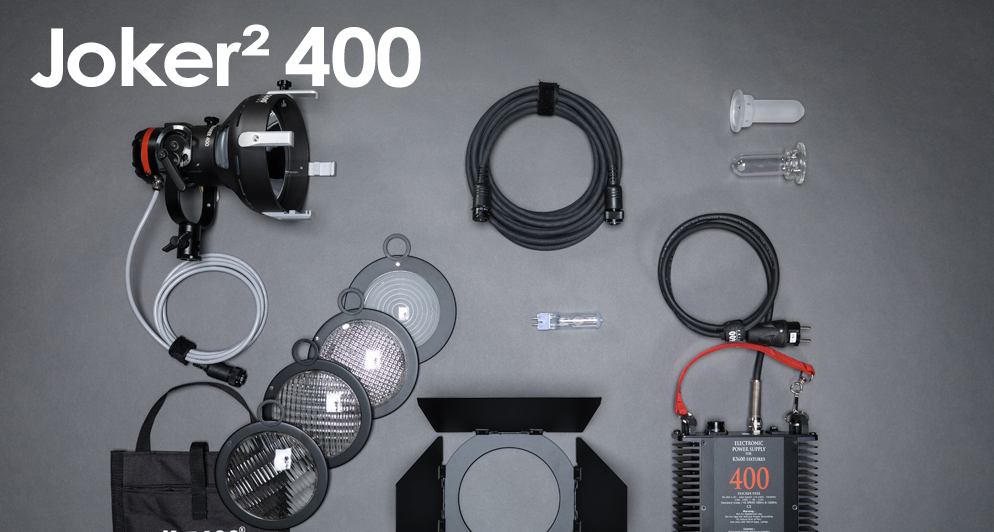

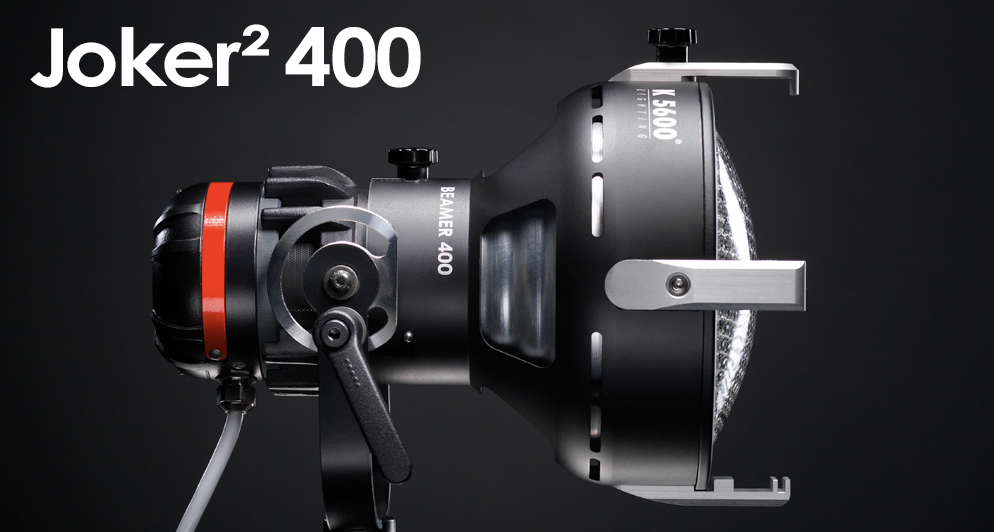

Like all the Joker² fixtures, the 400W can be used without a reflector which makes it ideal for use in Lightbanks; the light is evenly spread on the front screen without any hotspots. The included PAR beamer and the set of four lenses allow it to turn into a directional PAR unit allowing for more beam pattern options.

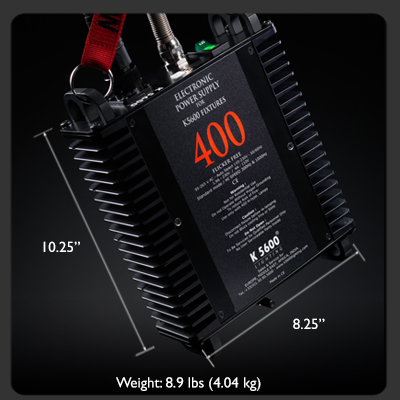

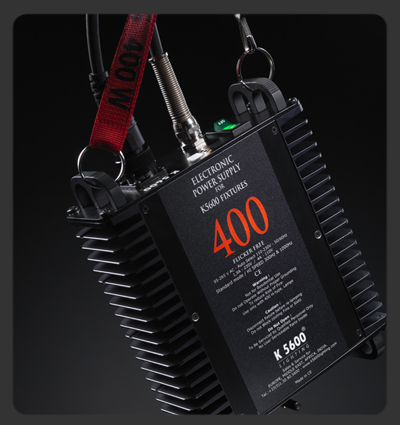

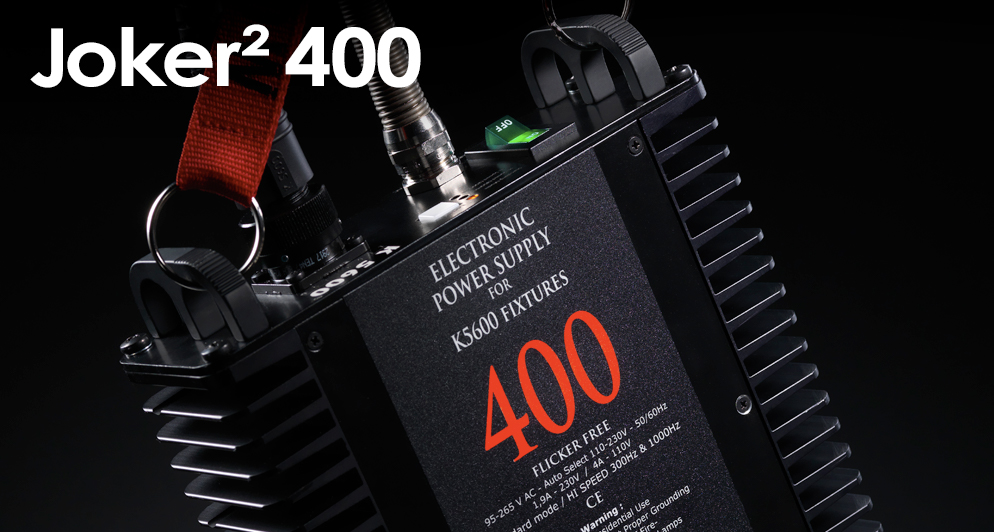

High-Speed Ballast & Wireless Capabilities
The 400W ballast is High Speed optimized meaning the user can choose between the 300 and 1000 Hz frequencies. Using the "Lumenradio" protocol, the new ballast now has an antenna and DMX panel allowing for it to be controlled via a tablet or smartphone.
Versatility
The choice of accessories designed by K5600, such as the Big Eye or the Softube, makes the already versatile and compact lighting system even more favorable to professionals for their interviews, documentaries, TV shows... |
 |
Electrical Consumption: 1.9 Amps @ 230V
JOKER² Speedring Reference: 9780 OP (compatible with Octaplus, Lanterns, Pancakes, Video Pro from Chimera)
Bulb: 400 Watt MSR/SE daylight single ended discharge, 5600 Kelvin, 700 hours maximum life.
Connectors: Veam quarter-turn quick locking.
Extension Cable: 25 foot shielded. Common to 400, 800 and 1600 (nine feet attached to the head).
|
 |
K 5600, Inc introduces the Focal Spot, which gives your current Joker-Bug 200W, 400W, or 800W immediate projection capabilities... (more) |
We carry a large assortment of Lightbanks, just give us a call or email and we'll find the right lighting solution for your needs... (more) |
The BIG-EYE Joker accessory will turn any Joker-Bug system into a Giant Focusable Fresnel Beauty light... (more) |
We carry a large assortment of Lanterns, just give us a call or email and we'll find the right lighting solution for your needs... (more) |
The BUG-A-BEAM Adaptor is the part that makes the mating of a Source-4 and our Bug-Light 400 or 800 not only possible but quick and easy... (more) |
The Multi-Bug Adaptor allows you to create a large, powerful, soft source using the inventory you already own or have at your disposal in your lighting package... (more) |
The Softube is an accessory to the Joker light. It transforms a normally spotty narrow beam into a soft and even linear source... (more) |
Photographers are turning to motion. Your clients are demanding it, and your cameras can handle it. We think you and your current crew can deliver both still and motion, without busting the budget... (more) |
Lenses come in Medium, Wide, Super Wide and Frosted Fresnel... (more) |
|
Distance : 3m
| LENSES |
LUX |
DIAPH 100 ASA 25 I/S |
RADIUS |
TOTAL ANGLE |
| W/O LENS |
95000 |
22 1/2 |
10 |
4° |
| MEDIUM |
14200 |
8 3/4 |
1,40m x 45cm |
|
| WIDE |
5000 |
5,6 1/4 |
2,60 x 60 cm |
|
| SUPER WIDE |
2400 |
4 1/4 |
1,40m |
50° |
| FROSTED FRESNEL |
2500 |
4 1/4 |
80cm |
30° |
Distance : 5m
| LENSES |
LUX |
DIAPH 100 ASA 25 I/S |
RADIUS |
TOTAL ANGLE |
| W/O LENS |
34200 |
16 |
0,17m |
4° |
| MEDIUM |
5112 |
5,6 1/4 |
|
|
| WIDE |
1800 |
2,8 3/4 |
|
|
| SUPER WIDE |
864 |
2 3/4 |
2,35m |
50° |
| FROSTED FRESNEL |
900 |
2,8 |
1,35m |
30° |
Distance : 10m
| LENSES |
LUX |
DIAPH 100 ASA 25 I/S |
RADIUS |
TOTAL ANGLE |
| W/O LENS |
8550 |
8 |
0,34m |
4° |
| MEDIUM |
1278 |
2,8 1/4 |
|
|
| WIDE |
450 |
2 |
|
|
| SUPER WIDE |
216 |
1,4 |
4,66m |
50° |
| FROSTED FRESNEL |
225 |
1,4 |
2,66m |
30° |
|
|
