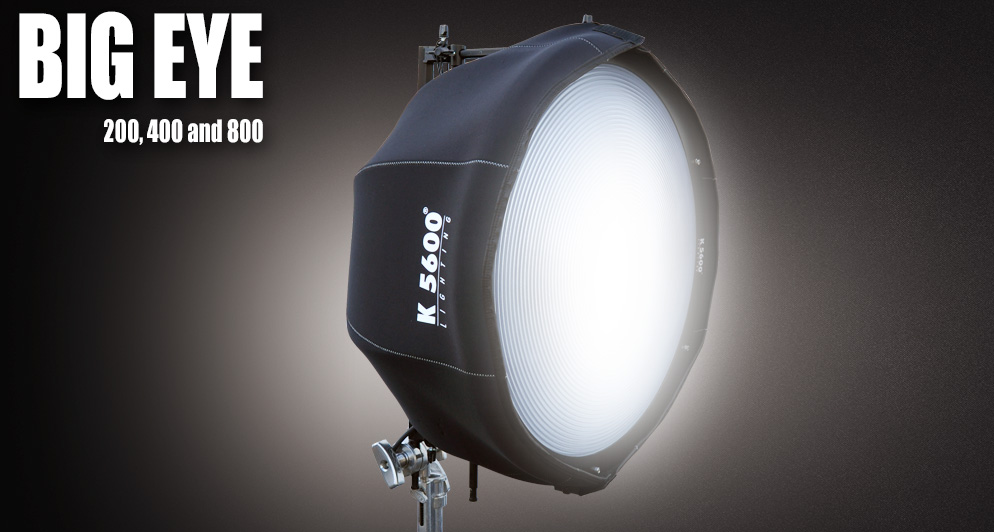

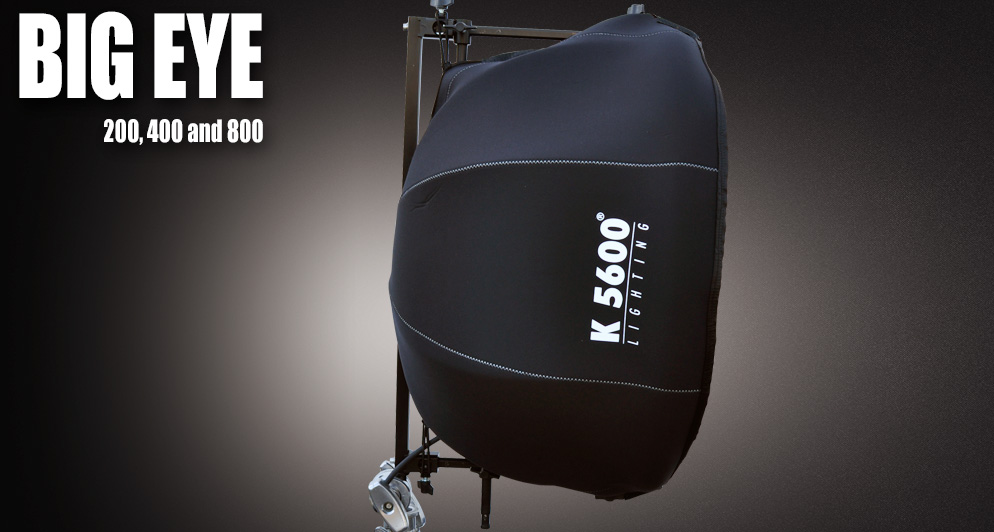

K 5600, Inc. introduces the new Big Eye Fresnel accessory for the Joker line of lighting fixtures.  The Big Eye is the first and only 24” polymer Fresnel lens that accepts interchangeable light sources, folds small, and sets up quickly.

The Big Eye Fresnel lens gives you the ability to create the same light patterns as a traditional 18K Fresnel, but with smaller sources.  Your Joker can focus back to front and create a 10 degree narrow spot beam to a 60 degree wide flood.

While the large source of the Big Eye is directional, it gives a very nice compromise between a totally soft, shadowless light and a hard light; it combines both, like the natural effect of sunlight coming from a large window.

Whether you need a bigger source as a front because a smaller source will be too harsh, or you need a natural defined shadow instead of a soft, flat look, the Big Eye will deliver.

Adapted to higher sensitivities of new advanced shooting methods, instruments such as the K 5600 Big Eye bring proven lighting techniques to today’s sets as well as advanced tools of creativity for the future.

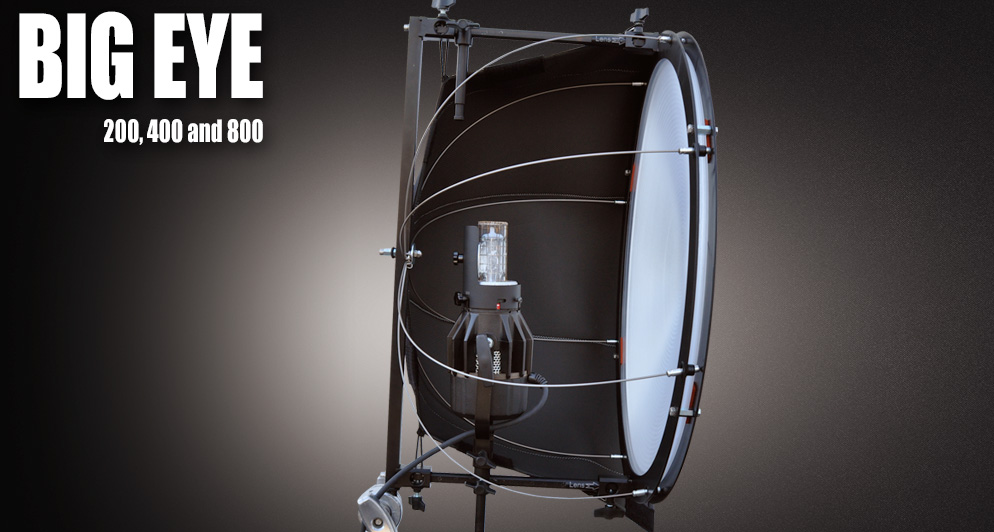

The Big Eye Fresnel Kit comes complete with 24” Fresnel Lens and structure, light center adapters for the 200W, 400W and 800W Jokers, Reflector, Black Skirt, and Transport Bag.  The kit weighs 20lbs, is 26” x 15”, and folds down flat.


Big Eye with 200W Joker-Bug


Distance to Screen (ft) 200 Spot 50% Spread 200 Flood 50% Spread
  FC (ft) FC (ft)
3' 5,227 0.4 849 4.3
6' 1,307 0.8 212 8.6
10' 470 1.3 76 14.3
15' 209 2.0 34 21.4


Big Eye with 400W Joker-Bug

Distance to Screen (ft) 400 Spot 50% Spread 400 Flood 50% Spread
  FC (ft) FC (ft)
3' 9,473 0.4 1,673 3.4
6' 2,368 0.7 418 6.9
10' 853 1.2 151 11.4
15' 379 1.8 67 17.1


Big Eye with 800W Joker-Bug

Distance to Screen (ft) 800 Spot 50% Spread 800 Flood 50% Spread
  FC (ft) FC (ft)
3' 22,083 0.4 3,789 3.6
6' 5,521 0.9 947 7.1
10' 1,987 1.4 341 11.9
15' 883 2.1 152 17.9

Big Eye Fresnel
