Joker² 1600

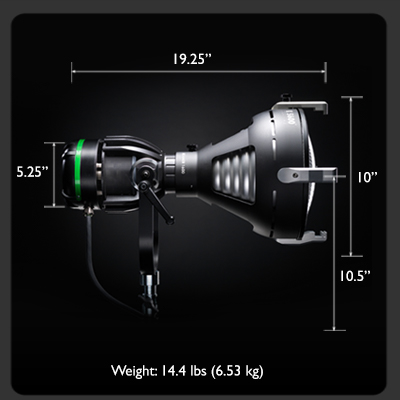

The 1600W is the most powerful unit of the Joker² range. At 1600W, this Joker is comparable to over 6000W of a Quartz fixture’s output and produces one full stop more than our Joker² 800.
Three Configurations

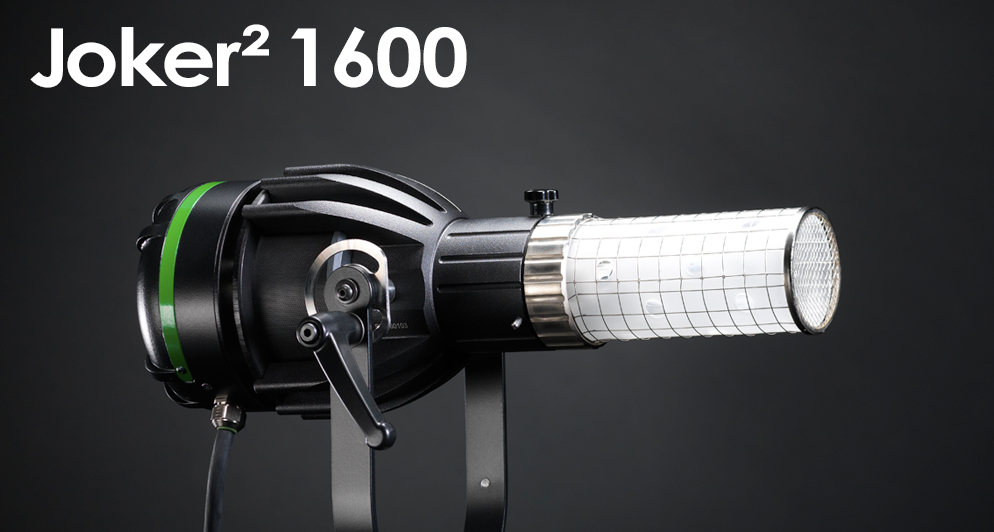

JOKER² : without optics, the bare-bulb output is optimal for use in Lightbanks and lanterns due to its ability to create perfectly even distribution within these accessories.

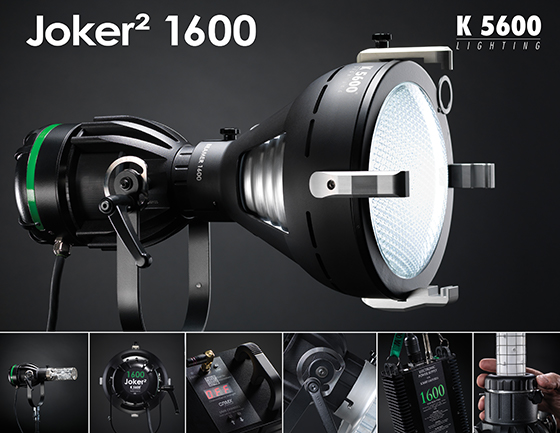

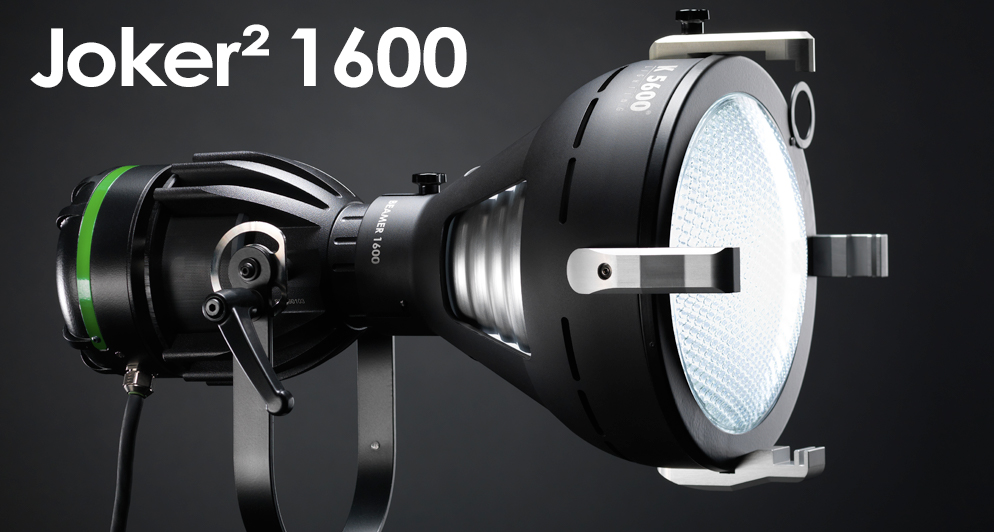

JOKER² (PAR VERSION) : it features a specular reflector and a set of four PAR 64 lenses (Medium, Wide, Super Wide and Frosted Fresnel). These lenses provide various light patterns and a maximum output due to the reflector design (parabolic reflector) and finish.

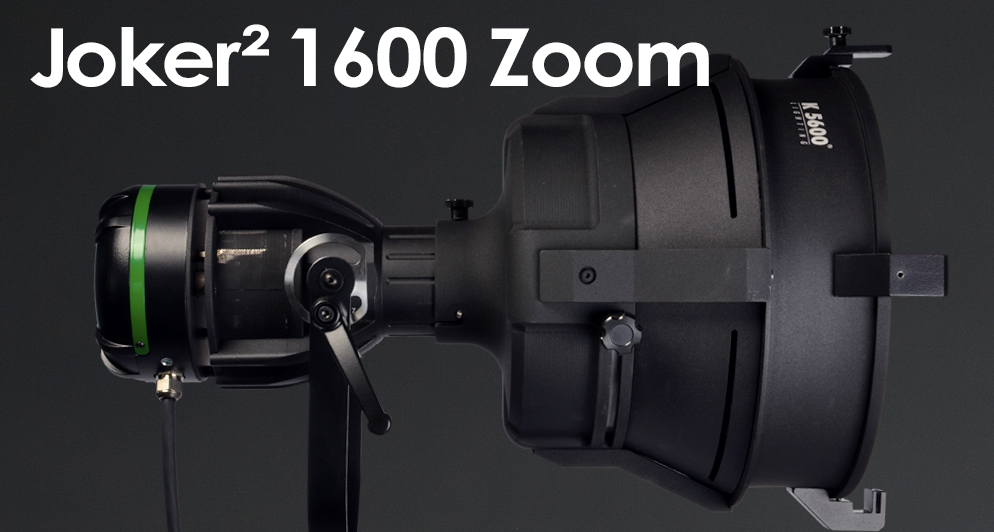

JOKER² (ZOOM VERSION) : revolutionary, this lensless and focusable beamer gives 15 to 60 degrees of even light output. With its physical similarities to a faceted umbrella, the soft finish beautifully distributes light across your subject.
High Speed Ballast & Wireless Capabilities

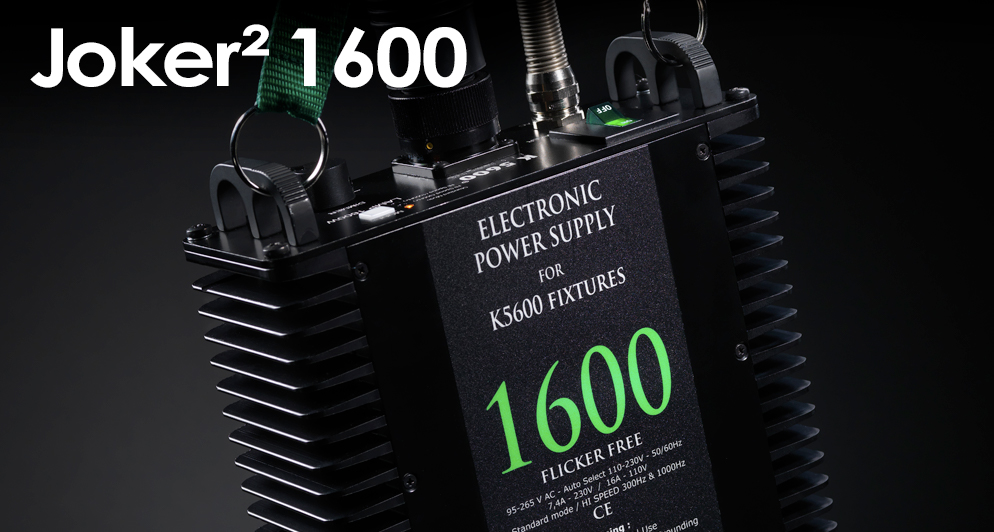

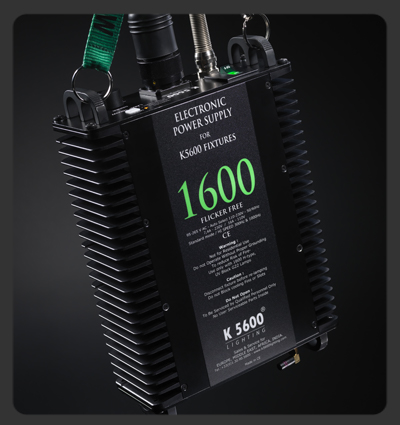

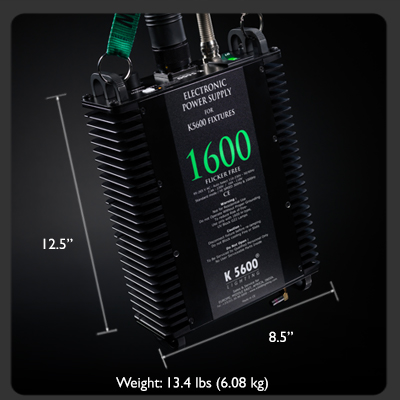

The 1600W comes with a dimmable ballast, which is able to work at 300 or 1000 Hz frequencies for High Speed shoots. Drawing only 15 amps on a 120VAC line, the 1600W ballast can run on any available house power. Using the "Lumenradio" protocol, the new ballast now has an antenna and DMX panel allowing for it to be controlled via a tablet or smartphone.
Convenience & Travel

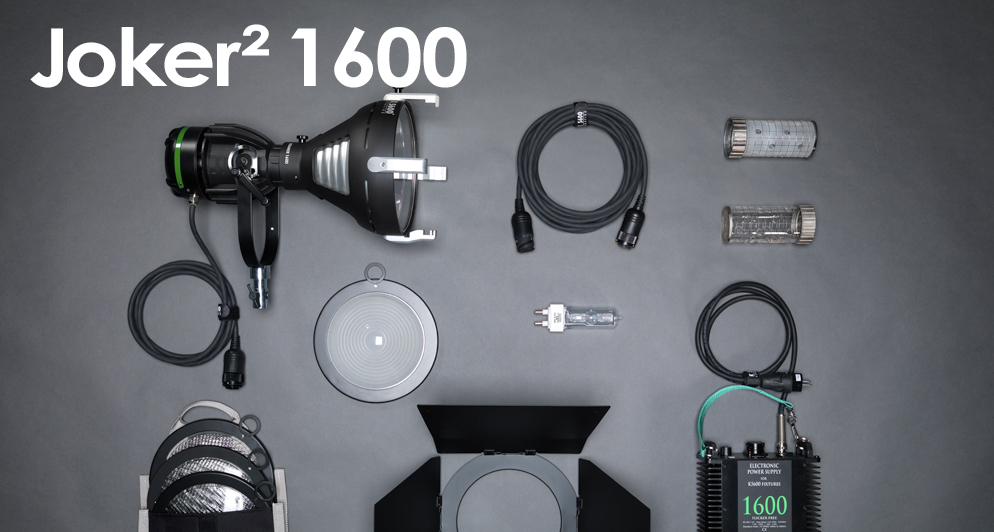

With its rolling case, the Joker² 1600W is a powerful fixture easy to take along on any journey. Additionally, because It can be run on domestic electrical supply, there is no need for a generator. |
 |
Electrical Consumption: 7.4 Amps @ 230V / 16 Amps @ 110 V
JOKER² Speedring Reference: 9780 OP (compatible with Octaplus, Lanterns, Pancakes, Video Pro from Chimera)
Bulb: 1600 Watt CSR/SE daylight single ended discharge, 5600 Kelvin, 700 hours maximum life.
Connectors: Veam quarter-turn quick locking.
Extension Cable: 25 foot shielded. Common to Alpha 1600 and Joker-Bug 1600 (7.50m).
|
 |
Lenses come in Medium, Wide, Super Wide and Frosted Fresnel... (more) |
We carry a large assortment of Lightbanks, just give us a call or email and we'll find the right lighting solution for your needs... (more) |
The BIG-EYE Joker accessory will turn any Joker-Bug system into a Giant Focusable Fresnel Beauty light... (more) |
We carry a large assortment of Lanterns, just give us a call or email and we'll find the right lighting solution for your needs... (more) |
The BUG-A-BEAM Adaptor is the part that makes the mating of a Source-4 and our Bug-Light 400 or 800 not only possible but quick and easy... (more) |
The Multi-Bug Adaptor allows you to create a large, powerful, soft source using the inventory you already own or have at your disposal in your lighting package... (more) |
The Softube is an accessory to the Joker light. It transforms a normally spotty narrow beam into a soft and even linear source... (more) |
Photographers are turning to motion. Your clients are demanding it, and your cameras can handle it. We think you and your current crew can deliver both still and motion, without busting the budget... (more) |
|
|
Distance : 3m
| LENSES |
LUX |
DIAPH 100 ASA 25 I/S |
RADIUS |
TOTAL ANGLE |
| W/O LENS |
445 000 |
|
14 cm |
5° |
| MEDIUM |
70 000 |
22 |
1,30 x 55 cm |
|
| WIDE |
24 300 |
11 1/2 |
3,40 x 95 cm |
|
| SUPER WIDE |
14 100 |
8 3/4 |
1m |
37° |
| FROSTED FRESNEL |
17 900 |
11 |
80cm |
30° |
Distance : 5m
| LENSES |
LUX |
DIAPH 100 ASA 25 I/S |
RADIUS |
TOTAL ANGLE |
| W/O LENS |
160 200 |
32 1/4 |
0,24m |
5° |
| MEDIUM |
25 200 |
11 1/2 |
|
|
| WIDE |
8 748 |
8 |
|
|
| SUPER WIDE |
5 076 |
5,6 1/4 |
1,66m |
37° |
| FROSTED FRESNEL |
6 444 |
5,6 1/2 |
1,34m |
30° |
Distance : 10m
| LENSES |
LUX |
DIAPH 100 ASA 25 I/S |
RADIUS |
TOTAL ANGLE |
| W/O LENS |
40 050 |
16 1/4 |
0,46m |
5° |
| MEDIUM |
6 300 |
5,6 1/2 |
|
|
| WIDE |
2 187 |
4 |
|
|
| SUPER WIDE |
1269 |
2,8 1/4 |
3,33m |
37° |
| FROSTED FRESNEL |
1611 |
2,8 1/2 |
2,66m |
30° |
ZOOM BEAMER
| DISTANCE |
POSITION |
LUX |
DIAPH 100 ASA 25 I/S |
RADIUS |
TOTAL ANGLE |
| 3m |
SPOT |
83 000 |
22 1/4 |
40cm |
15° |
| FLOOD |
14 000 |
8 3/4 |
1,80m |
60° |
| 5m |
SPOT |
29 880 |
11 3/4 |
0,66m |
15° |
| FLOOD |
5 040 |
5,6 1/4 |
3m |
60° |
| 10m |
SPOT |
7 470 |
5,6 3/4 |
1,33m |
15° |
| FLOOD |
1 260 |
2,8 1/4 |
6m |
60° |
|
|
